Multi-level eccentric cone development is one of the most advanced flat pattern calculations used in sheet metal fabrication. These developments combine multiple cone sections with offset centerlines, creating complex transition geometries used in industrial equipment, process systems, ducting, and material handling applications.

Unlike standard concentric cones, multi-level eccentric cones require the calculation of multiple offset transitions while maintaining proper alignment between connected sections. Because of this complexity, accurate flat pattern generation is critical for successful fabrication.

In this guide, you’ll learn what a multi-level eccentric cone is, where it is used, the dimensions required for development, and how software can generate accurate layouts for fabrication.

What Is a Multi-Level Eccentric Cone?

A multi-level eccentric cone consists of two or more connected cone sections where one or more stages include an offset between the centerlines of adjoining diameters.

Unlike a multi-level concentric cone:

  • Centerlines are not aligned.
  • Multiple cone stages are combined.
  • True lengths vary throughout the geometry.
  • Development calculations become significantly more complex.

These designs are often required when space constraints or equipment layouts prevent the use of concentric transitions.

A multi-level eccentric cone may also be referred to as:

  • Compound Eccentric Cone
  • Multi-Stage Offset Cone
  • Multi-Level Offset Transition
  • Stepped Eccentric Cone
  • Eccentric Reducer Assembly

Although terminology varies, the development principles remain similar.

Where Are Multi-Level Eccentric Cones Used?

Multi-level eccentric cone developments are commonly used in:

  • Process plants
  • Industrial ducting systems
  • Material handling equipment
  • Pneumatic conveying systems
  • Dust collection systems
  • Power generation facilities
  • Chemical processing equipment
  • Custom industrial transitions

These applications often require complex offset arrangements that cannot be achieved using standard cone developments.

Dimensions Required for Multi-Level Eccentric Cone Development

Most calculations require:

  • Large Diameter
  • Small Diameter
  • Section Height
  • No. of Levels
  • Material Thickness (if compensation is required)

Each stage must be calculated accurately to maintain continuity throughout the development.

Understanding Multi-Level Eccentric Cone Geometry

Multi-level eccentric cones combine the complexity of:

  • Multiple cone sections
  • Offset centerlines
  • Variable true lengths
  • Complex development boundaries

Because each stage contains different geometry, accurate calculations are essential to ensure proper fabrication.

The development process often requires detailed true-length calculations and geometric construction methods.

For a general overview of cone geometry, see our Cone Development Guide.

For the fundamental formulas used in cone layout calculations, see our Cone Development Formula guide.

Manual Multi-Level Eccentric Cone Development Method

Traditional development methods typically involve:

  1. Defining all cone stages.
  2. Establishing offsets for each section.
  3. Dividing the geometry into segments.
  4. Calculating true lengths.
  5. Constructing development curves.
  6. Combining all sections into the final pattern.

While these methods are effective, they can require significant drafting time and experience.

Example of Multi-Level Eccentric Cone Development

Consider a multi-level eccentric cone with:

  • Large Diameter: 1000 mm
  • Small Diameter: 400 mm
  • Total Height: 900 mm
  • No. of Levels: 2 Nos.
  • No. of Development Lines: 24

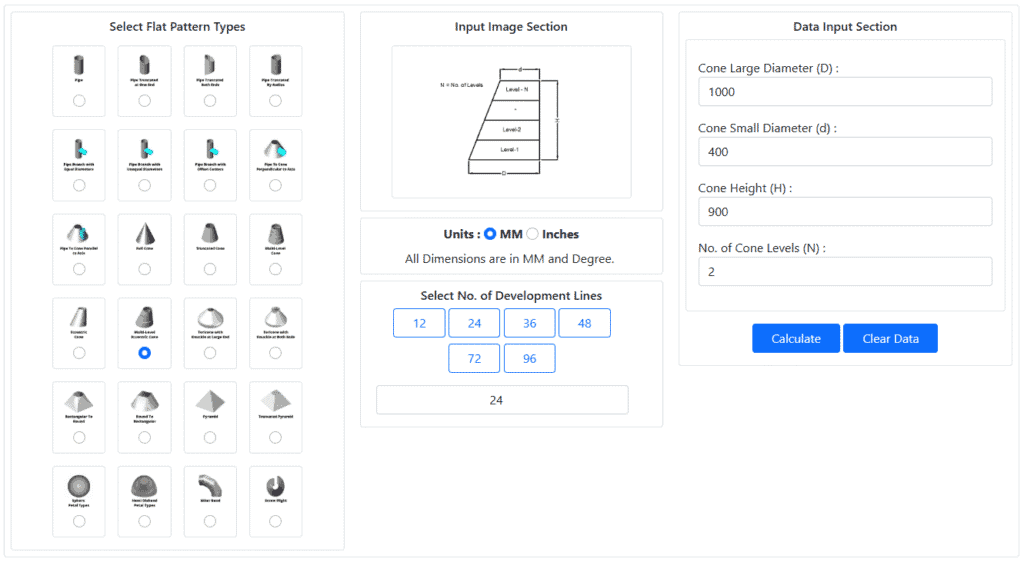

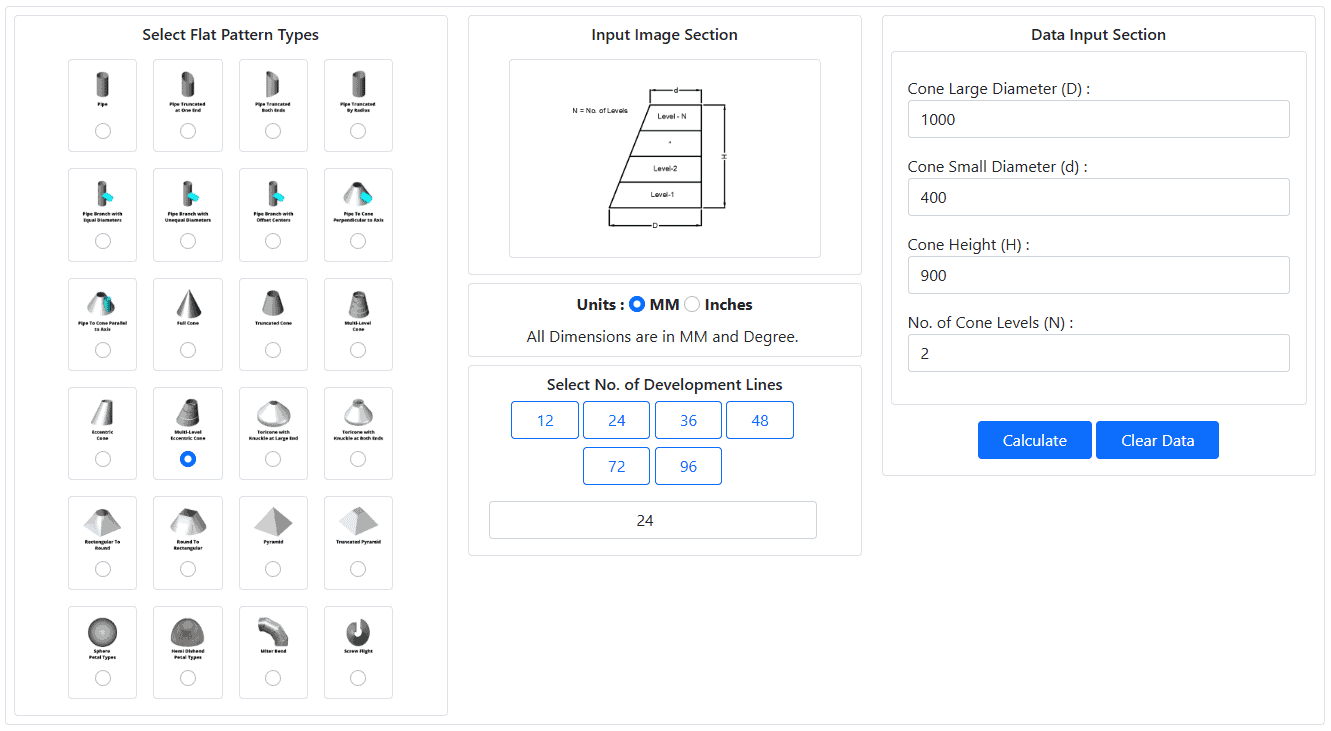

multi stages eccentric cone flat pattern development example input
Figure 1: Multi-level eccentric Cone Flat Pattern Development Example Input Dimensions

Using these dimensions, the developed pattern can be generated for fabrication.

A typical workflow includes:

  1. Entering dimensions.
  2. Defining offsets.
  3. Generating the development.
  4. Reviewing pattern geometry.
  5. Exporting fabrication-ready outputs.

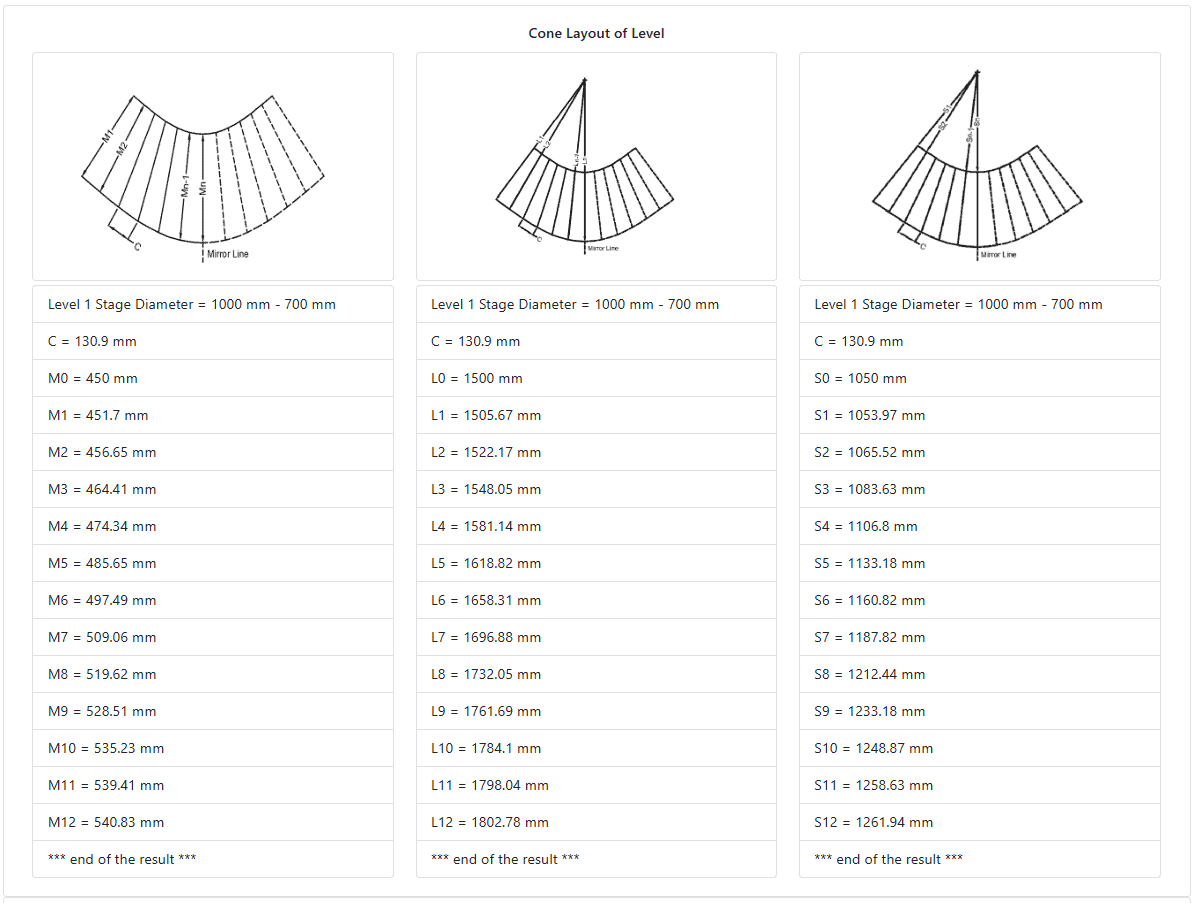

multi stages eccentric cone flat pattern development result for stage 1
Figure 2: Multi-level Eccentric Cone Flat Pattern Development Example result data for Stage 1.

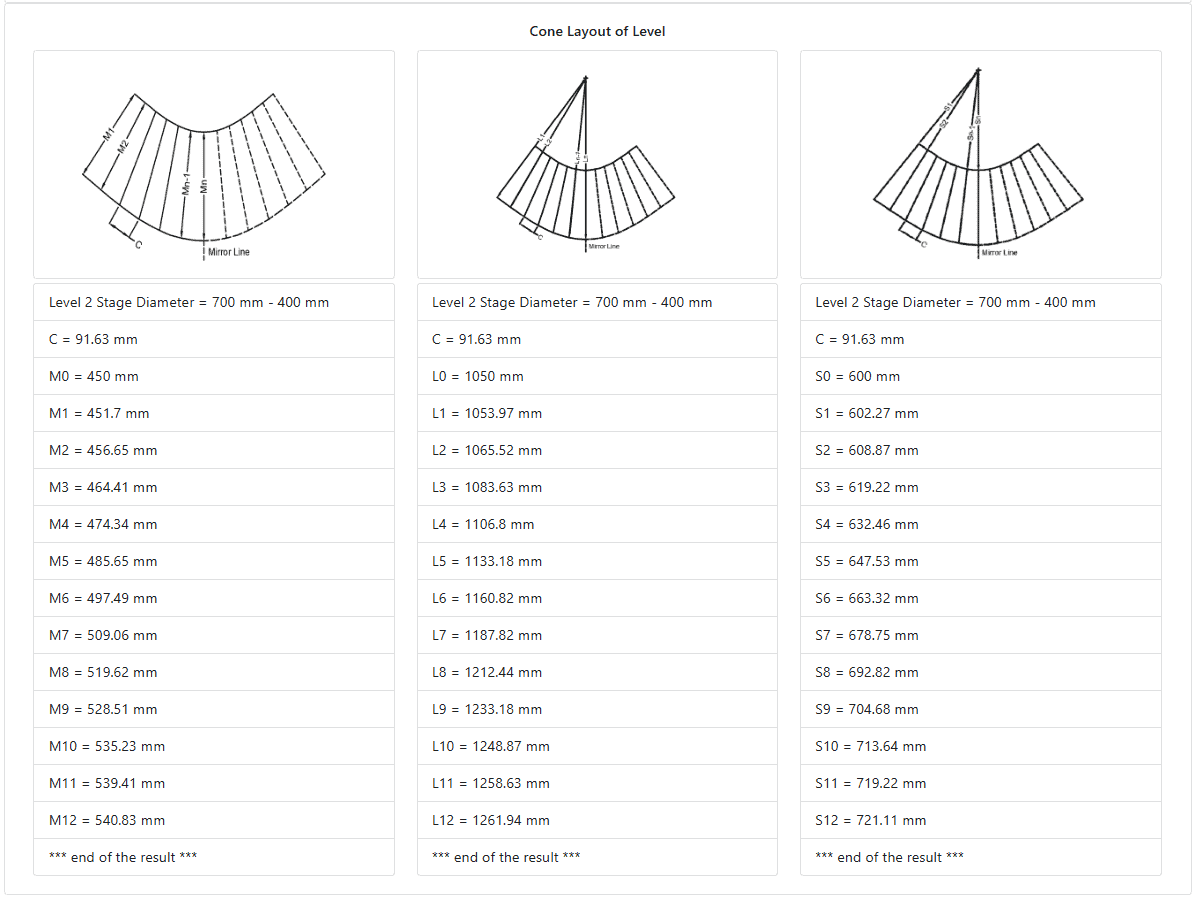

multi stages eccentric cone flat pattern result data for stage-2
Figure 3: Multi-Level Eccentric Cone Flat Pattern Development Example Result Data for Stage 2

View our Cone Development Example to understand how flat patterns are generated from fabrication dimensions.

Need DXF export, professional PDF reports, fractional dimensions, and access to all flat pattern calculators? Explore Let’sFab Premium.

Common Challenges

Fabricators often encounter:

  • Incorrect true-length calculations
  • Offset alignment errors
  • Development curve inaccuracies
  • Pattern continuity issues
  • Time-consuming manual drafting

Even minor errors can create significant fit-up problems during fabrication.

Generate Multi-Level Eccentric Cone Flat Patterns Using Let’sFab

The Let’sFab Cone Development Calculator includes a dedicated Multi-Level Eccentric Cone option for generating accurate flat patterns.

Simply enter the required dimensions and generate the complete development within seconds.

The calculator provides:

  • Developed pattern layouts
  • Manufacturing dimensions
  • PDF reports
  • DXF export files (Premium)
  • Fabrication-ready geometry

This helps fabricators reduce drafting time and improve development accuracy.\

Try the free Cone Development Calculator

Explore Let’sFab Premium Software

Why Use a Multi-Level Eccentric Cone Development Calculator?

Dedicated development software provides:

  • Faster calculations
  • Improved accuracy
  • Reduced material waste
  • Faster project revisions
  • Consistent results
  • Professional fabrication documentation

This is especially valuable for advanced fabrication projects involving complex transition geometries.

Need DXF export, professional PDF reports, fractional dimensions, and access to all flat pattern calculators? Explore Let’sFab Premium.

Frequently Asked Questions

What is a multi-level eccentric cone?

A multi-level eccentric cone consists of multiple connected cone sections that include offset centerlines between stages.

Why are multi-level eccentric cones used?

They allow complex transitions where space constraints or equipment layouts require offset geometries.

Is multi-level eccentric cone development difficult?

Yes. The combination of multiple stages and offsets makes these developments significantly more complex than standard cone layouts.

What dimensions are required?

Most calculations require diameters, heights, offsets, and material information.

Can multi-level eccentric cones be developed manually?

Yes, but manual calculations are time-consuming and often require advanced true-length construction methods.

Related Resources

Conclusion

Multi-level eccentric cone development is one of the most advanced flat pattern calculations used in industrial fabrication. Accurate layouts are essential for achieving proper fit-up, minimizing material waste, and ensuring efficient manufacturing.

Modern development software can automate these calculations and generate fabrication-ready patterns within seconds, helping fabricators handle complex transition geometries with confidence.
